Rally Bar Huddle comes with a multi-mount that allows the device to be mounted on a tabletop, on the wall, or above the display.

Note: Mount screws for the Rally Bar Huddle, when using TV Mount for Video Bars, can be replaced with 1/4-20 at approximately 9-10mm long.

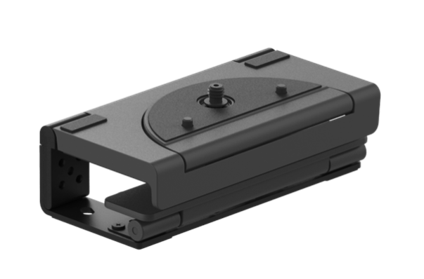

Front

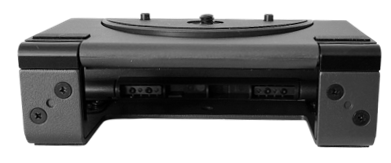

Back

Attach Mount | Table Mount | Mount to Wall | Mount to Display

Attach Mount

• Open the primary hinge and locate the D-Ring
• Align tripod screw and registration studs. Turn the D-Ring clockwise until the device sits flush on the mount

Step 1

Step 2

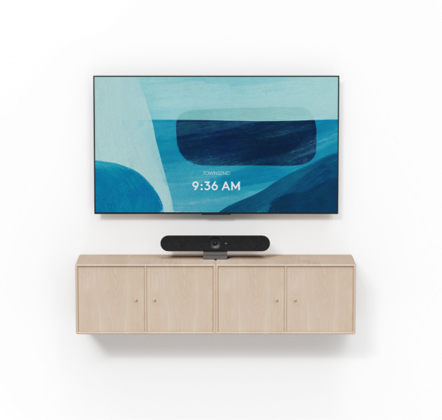

Table Mount

Note: Rally Bar Huddle cannot be set directly on a table surface. The downward firing port on the right side of the device requires clearance from flat surfaces.

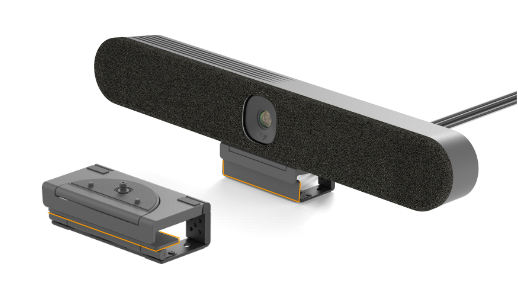

Attach Rally Bar Huddle to the multi-mount and tilt the foot from the horizontal to the vertical position.

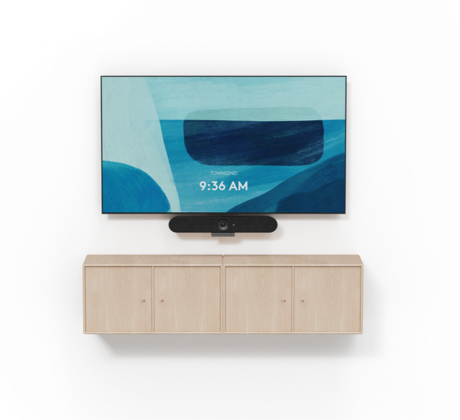

Mount to Wall

The multi-mount can be mounted to the wall in 2 different ways. Either with no screws removed and the mount visible, or screws removed and the mount hidden.

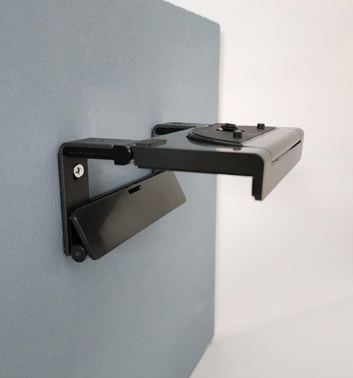

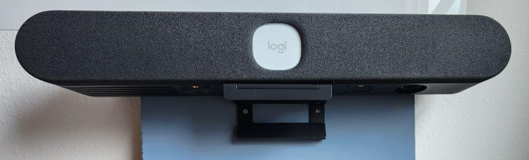

Mount Visible (no screws removed)

• Open the primary hinge so that the mount platform is at a 90° angle to the back plate
• Use VESA holes and appropriate hardware to affix the mount to the wall

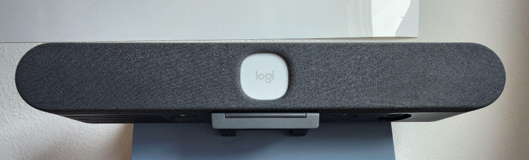

Mount Hidden (remove 4 screws)

• Remove 4 screws from the multi-mount and separate the 2 pieces
• Extend the 2 black tabs on the mount platform
• Rotate the back plate 180°
• Insert the 4 screws to the underside of the fixed tabs on the back plate
• Use VESA holes and appropriate hardware to affix the mount to the wall

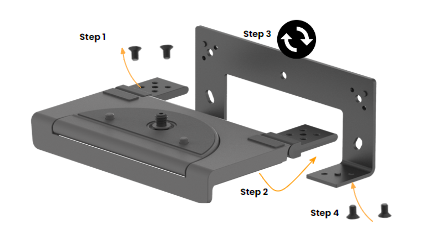

Steps 1-4

Step 5

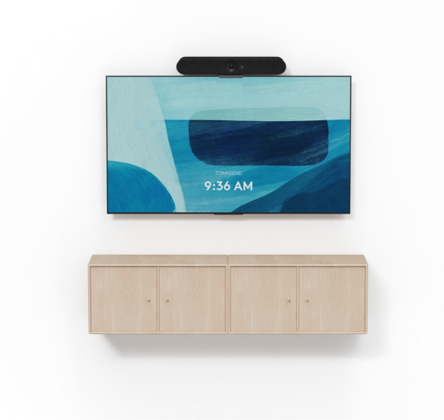

Mount to Display

Note: when mounted to a display Rally Bar Huddle can be tilted downward to a maximum of 25°

Mounting Rally Bar Huddle to the display requires the use of the included display holster.

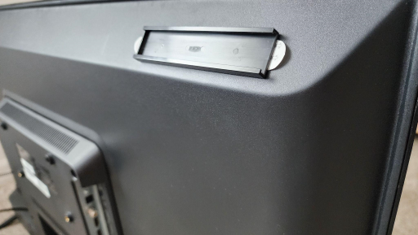

• Test fit the monitor clamp on the multi-mount by placing it against the back of the display with the display holster attached and mark its location
• Follow the 3M instructions for application of the holster here: Mount Command Strips
• Attach Rally Bar Huddle to the multi-mount (if not already attached)

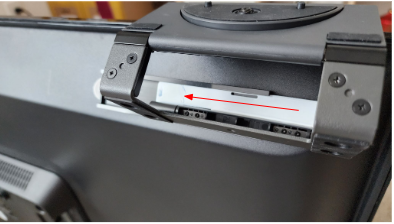

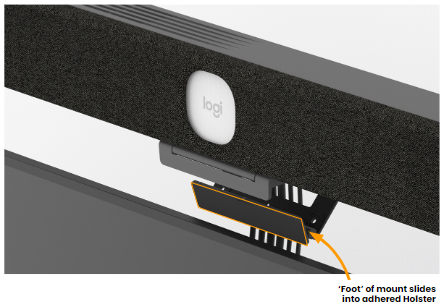

• Slide the mount assembly into the display holster

Step 1

Step 2

Step 4
