Summary

The Logitech Script DFU software is a tool to update firmware of supported devices. Intended to be used by IT Managers and Administrators.

IMPORTANT: Deployment type should be Install and Available, NOT Required.  This will prevent devices becoming unusable during critical work use.  For example if the client (user) is in the middle of a presentation, or critical work, they will lose keyboard input during this time.

For easier printing and sharing, a PDF of this process can be found here.

Download Logitech ScriptDFU

Download the Logitech ScriptDFU software from the following link

How to deploy DFU with SCCM

1. In your distribution point put the DFU Tool

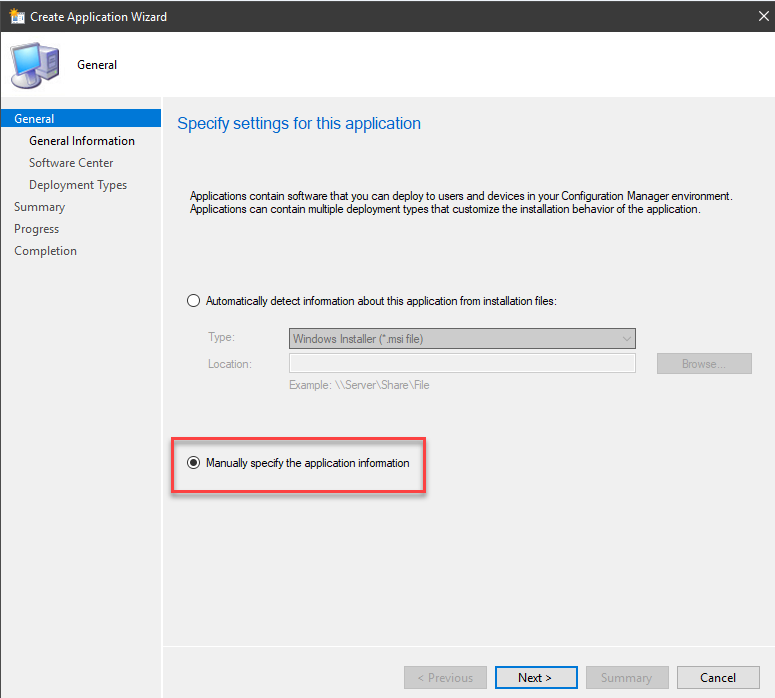

2. Create a new Application and choose manually specify application information

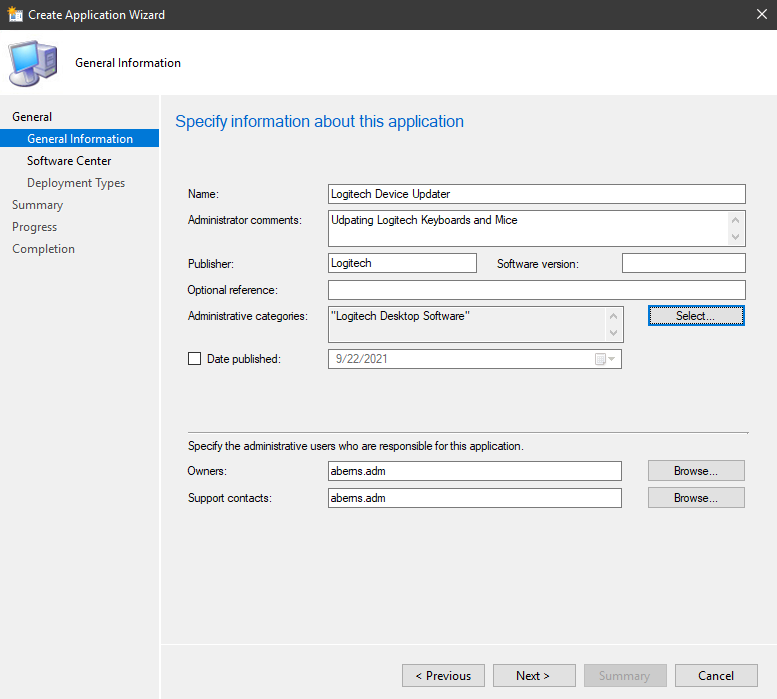

3. Fill out the General Information

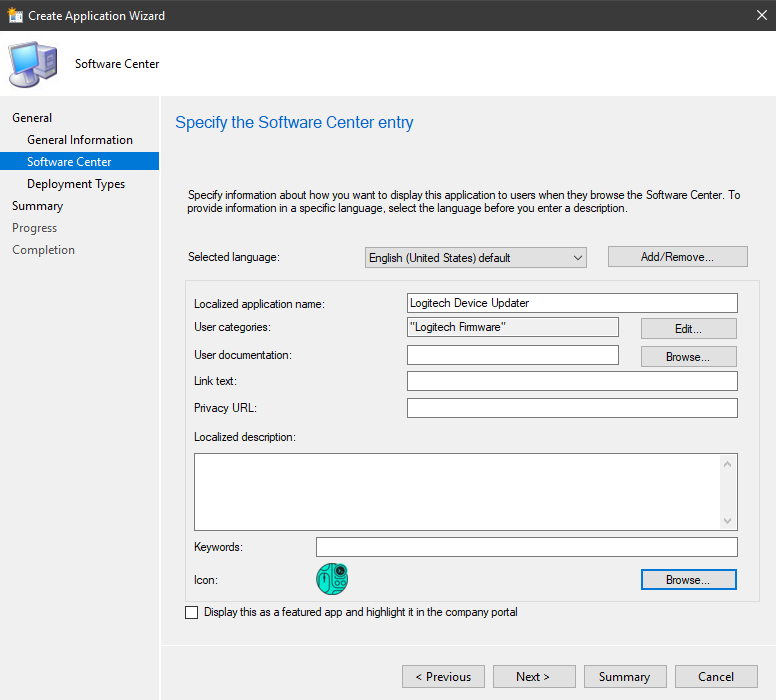

4. Fill out the details for the Software Center. You can add the icon from the DFU Tool as well.

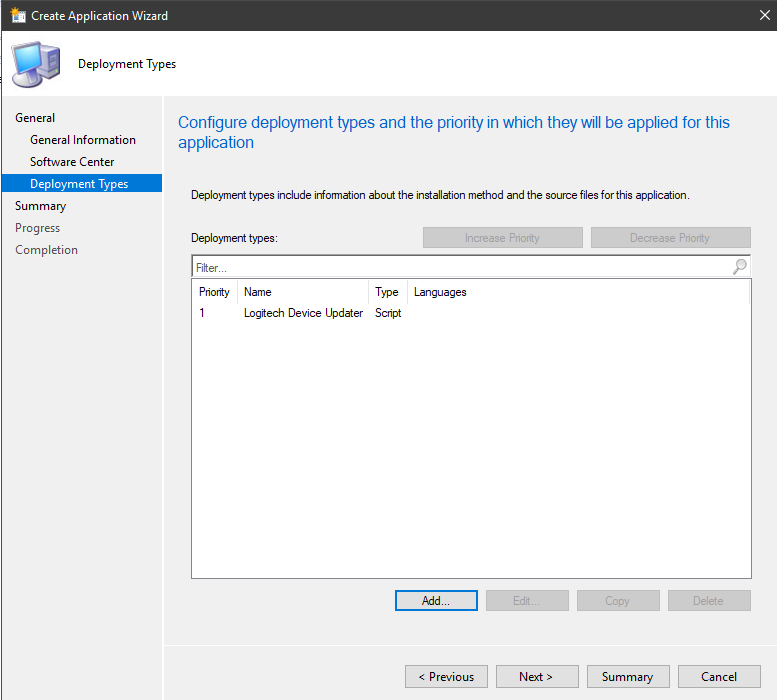

5. Add a deployment Type

6. Choose a Scripted Installer

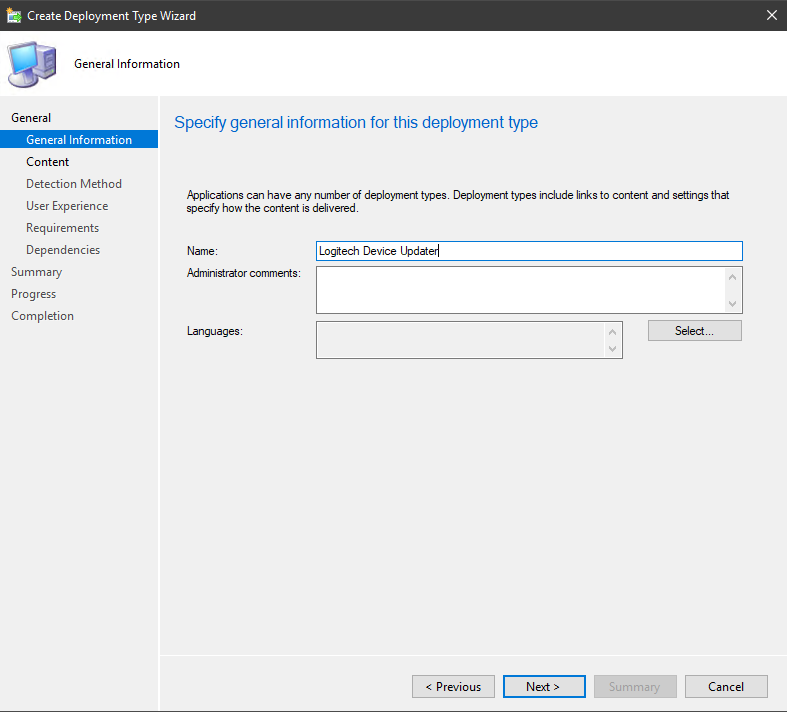

7. Enter the General Information, specifically the name

8. Download the Logitech_dfu.exe from this link
9. Select the folder that contains the Logitech_dfu.exe file
1. Set the Installation Program:

logitech_dfu.exe /available /list /fw_version /pop-up /wait /timeout 86400 /output c:\Windows\temp\dfu_log.txt /upgrade_latest

1. 1. 1. There is no uninstaller for this

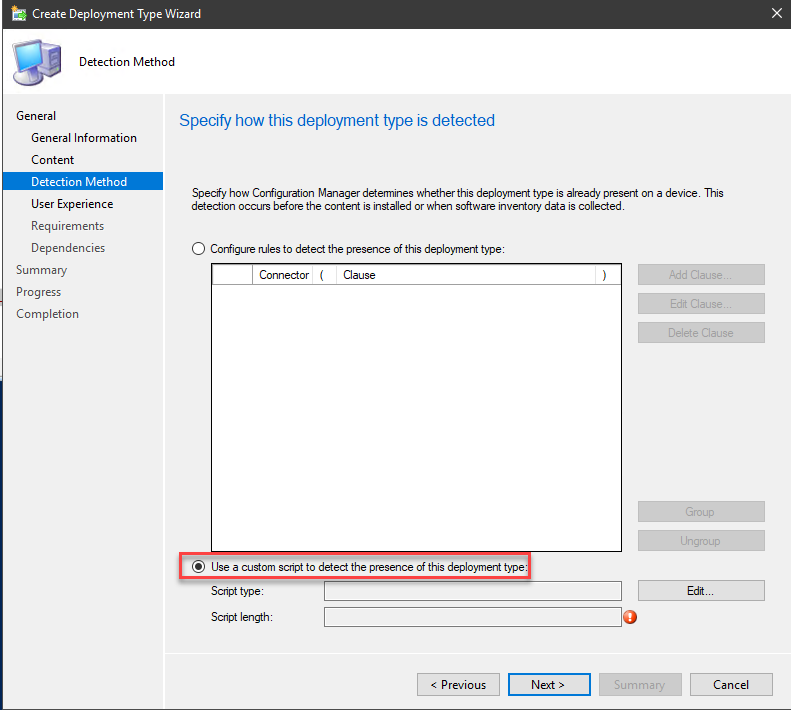

10. Choose a Script as the detection method and choose Edit

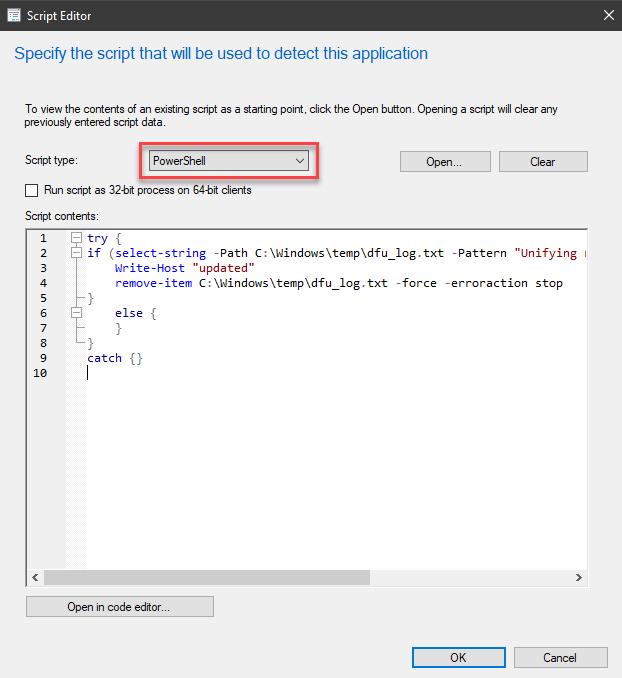

11. Set the Script Detection method to PowerShell with the following Script

12. Click OK to finish the detection

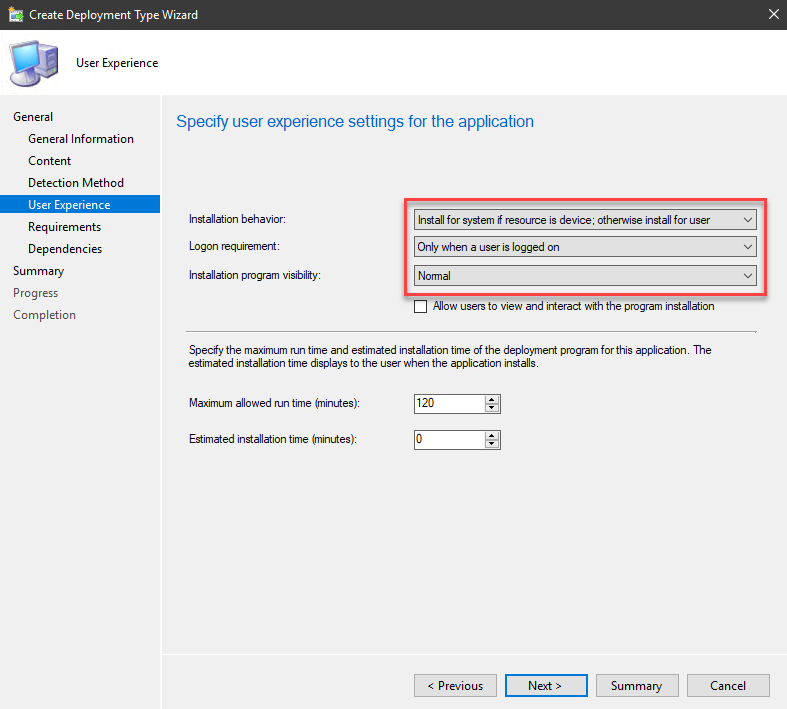

13. At the user experience make the following settings
1. Installation Behavior: Install for System if resource is Device; otherwise install for user
2. Logon Requirement: Only when a user is logged on
3. Installation Visibility: Normal

14. There are no requirements or Dependencies.
15. Click Next to finish up the process

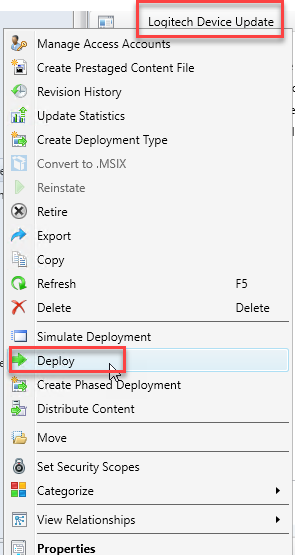

16. Deploy the Application

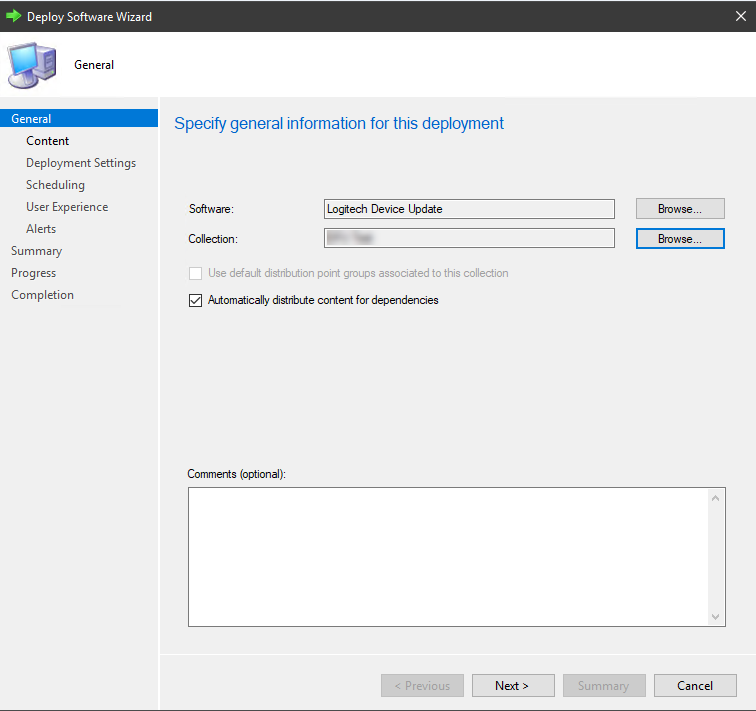

17. Select your collection

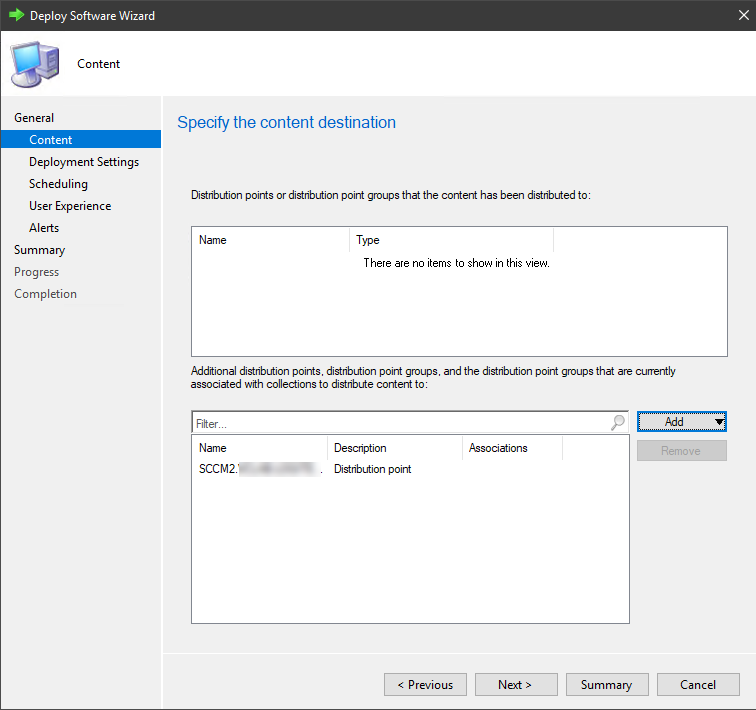

18. Select your Distribution

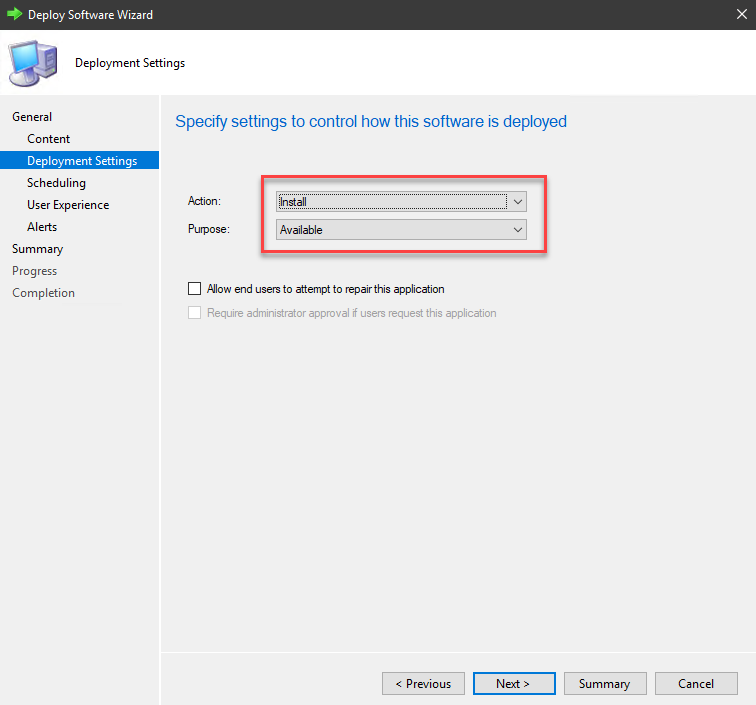

19. IMPORTANT: Deployment type should be Install and Available NOT Required.  This is due to the fact that the keyboard is unusable during the upgrade which could happen at any time.  So for example: if the user is in the middle of a presentation, or critical work, they will lose keyboard input during this time.

20. Set the Schedule

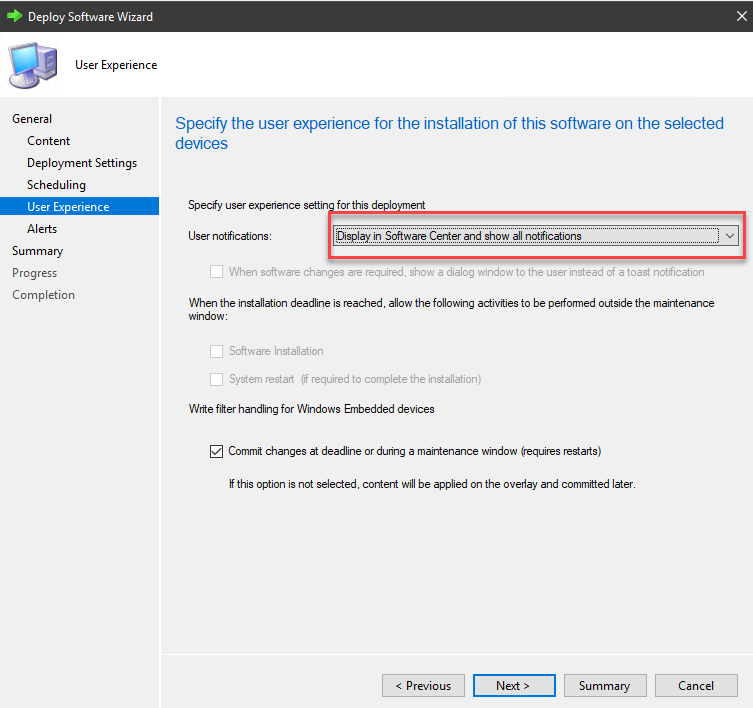

21. Set the User Experience to Display in Software Center and Show all Notifications

22. Set Alerts if required
